SD60GS 1hr Fire Protective Smoke Curtain with Egress

U.S. Smoke & Fire › SD60GS 1HR Smoke Curtain With Egress

The U.S. Smoke & Fire – SD60GS 1Hr Fire Protective Smoke Curtain with Egress is a 1-hour rated UL Listed, Labeled, and Recognized GRAVITY FAIL SAFE deployable fire protective smoke curtain system composed of a glass- fiber fabric in a Panama weave, rolled on a round steel tube in a fire rated assembly. The curtain remains retracted above the finished ceiling by a low voltage system until activated by a fire alarm, smoke alarm or fusible link at which point it descends at 6 in/sec. and creates a smoke and fire barrier.

Technical Information:

  • 1-hour smoke and fire rated Curtain fabric.
  • The curtain can have a maximum span up to 146 feet and drop height of 45 feet.
  • Optional hand liftable grab strap for manual egress per section 3.1.1. of ICC AC77.
  • Screen rewind switch on both sides of curtain.
  • Optional split curtain as a secondary egress per section 3.1.2. of ICC AC77.
  • ICC-ES-3322.

Product Downloads:

SEE THE SMOKE CURTAIN IN ACTION:

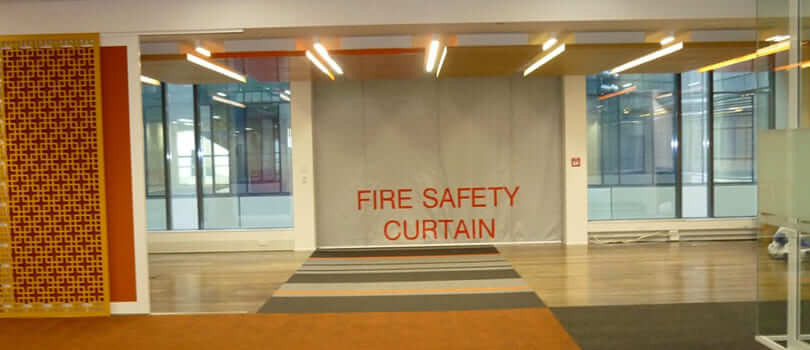

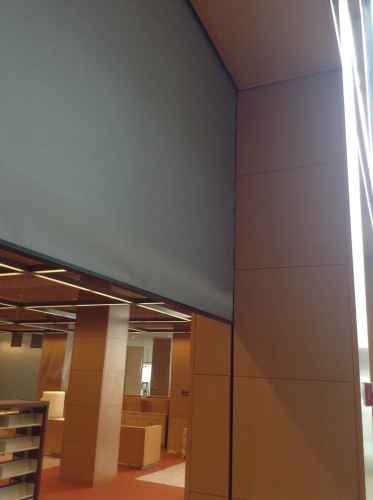

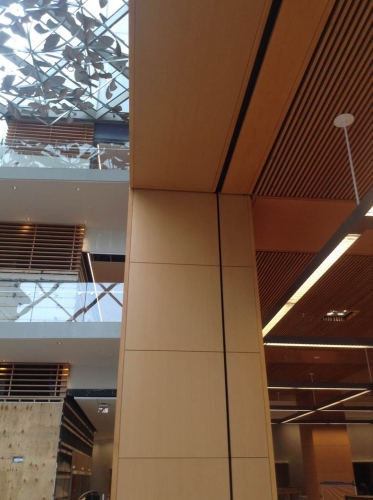

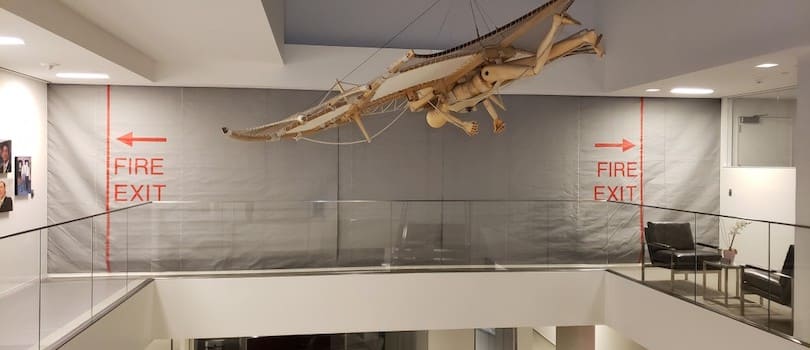

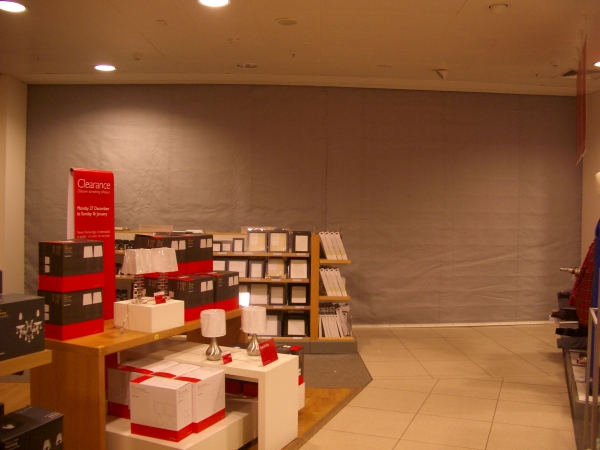

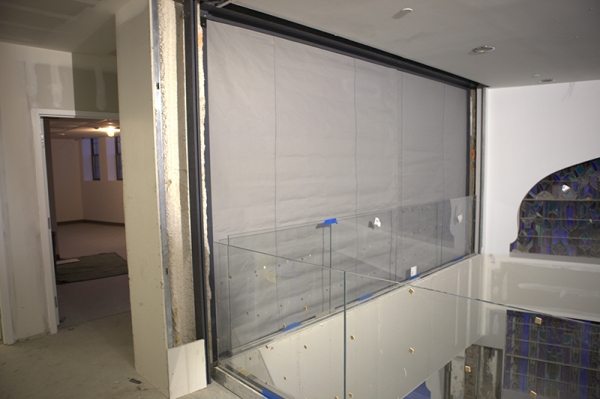

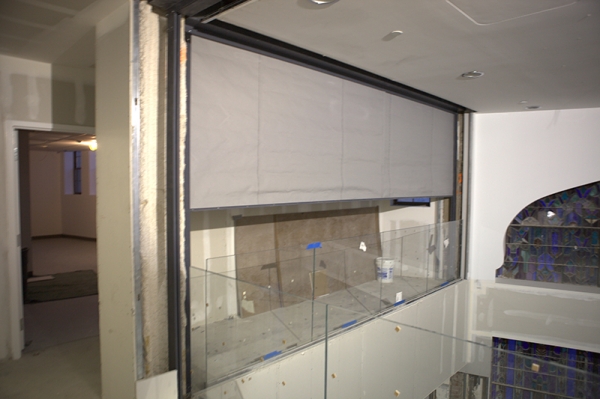

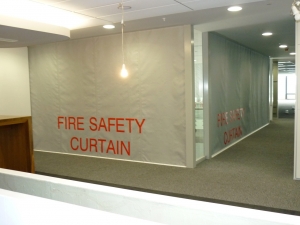

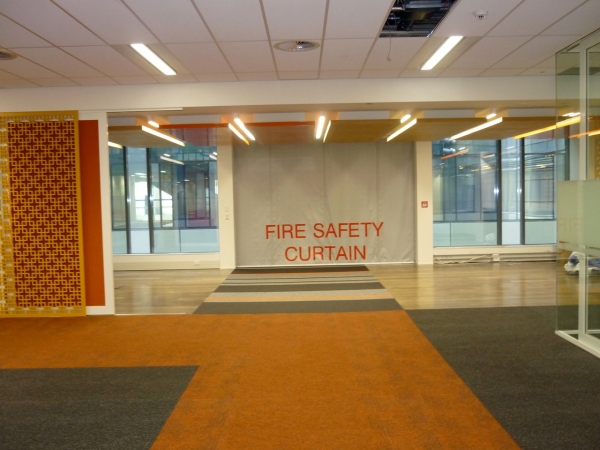

VIEW IMAGES OF THE SMOKE CURTAIN IN ACTION:
