HOSE STREAM 120®- TESTED FOR 1 1/2 HOURS TO UL 10B STANDARD WITH HOSE STREAM TEST (ASTM E2226) FOR UP TO A 2 HOUR WALL

HOSE STREAM 120®- TESTED FOR 1 1/2 HOURS TO UL 10B STANDARD WITH HOSE STREAM TEST (ASTM E2226) FOR UP TO A 2 HOUR WALL - UL Certified Fire Protective Smoke Curtains - U.S. Smoke & Fire™ - fabric_fire_shutterU.S. Smoke & Fire Hose Stream 120® Steel-tex Fire Shutter (SFS) is an opening protective that meets the requirement for a 90- minute fire protection rating and therefore can be used in a two hour fire rated wall assembly.
Please see below IBC TABLE OPENING FIRE PROTECTION ASSEMBLIES

HOSE STREAM 120®- TESTED FOR 1 1/2 HOURS TO UL 10B STANDARD WITH HOSE STREAM TEST (ASTM E2226) FOR UP TO A 2 HOUR WALL - UL Certified Fire Protective Smoke Curtains - U.S. Smoke & Fire™ - renditionDownload

The U.S. Smoke & Fire Hose Stream 120® shutter is tested to UL 10B and has a minimum of 1 1/2 hour fire protection rating to be sufficient for an opening protective in a 2- hour fire barrier enclosing wall per IBC Table. A hose stream test (ASTM E2226) is conducted as part of the fire endurance testing and the shutter shall have passed this test.

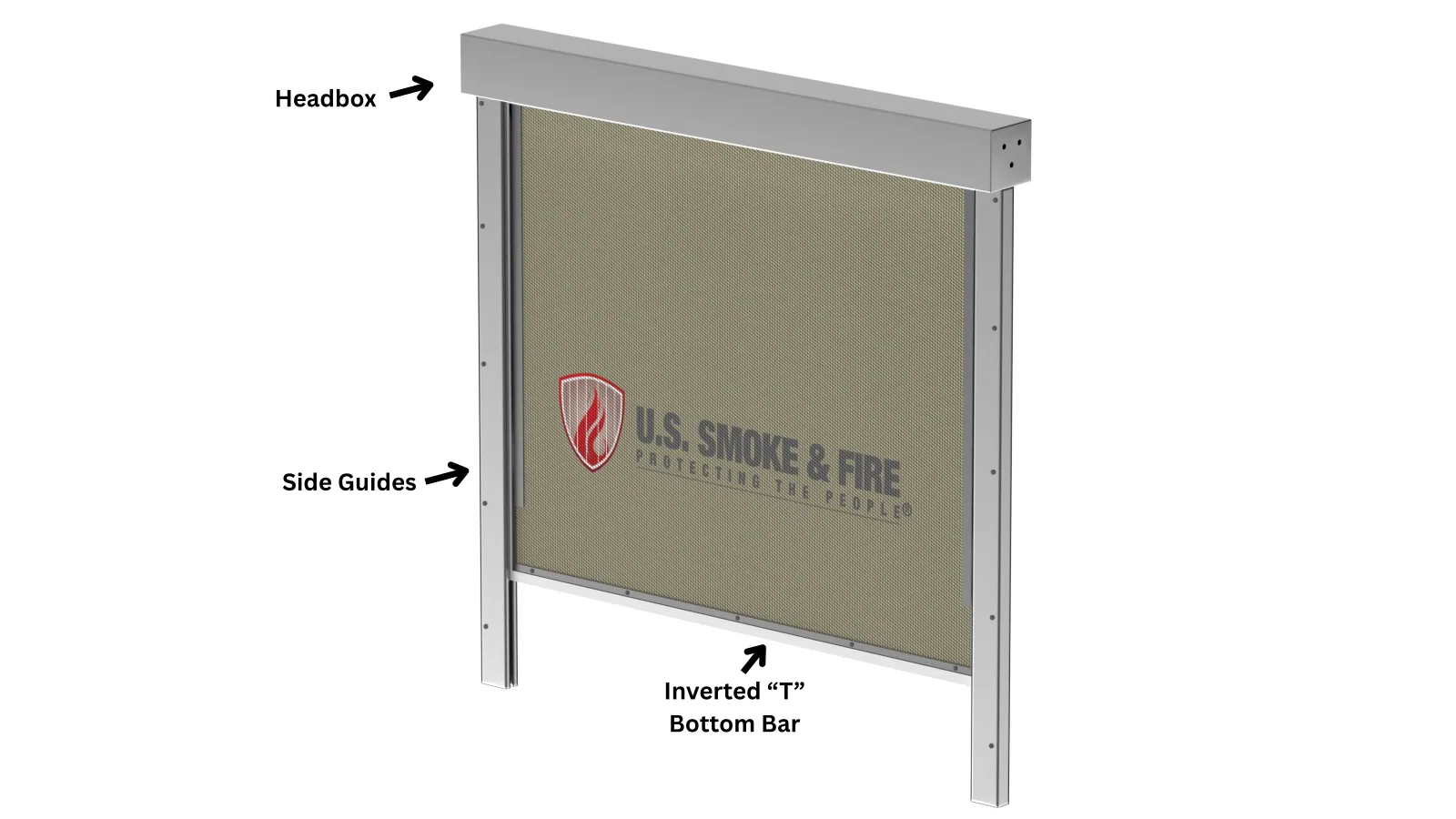

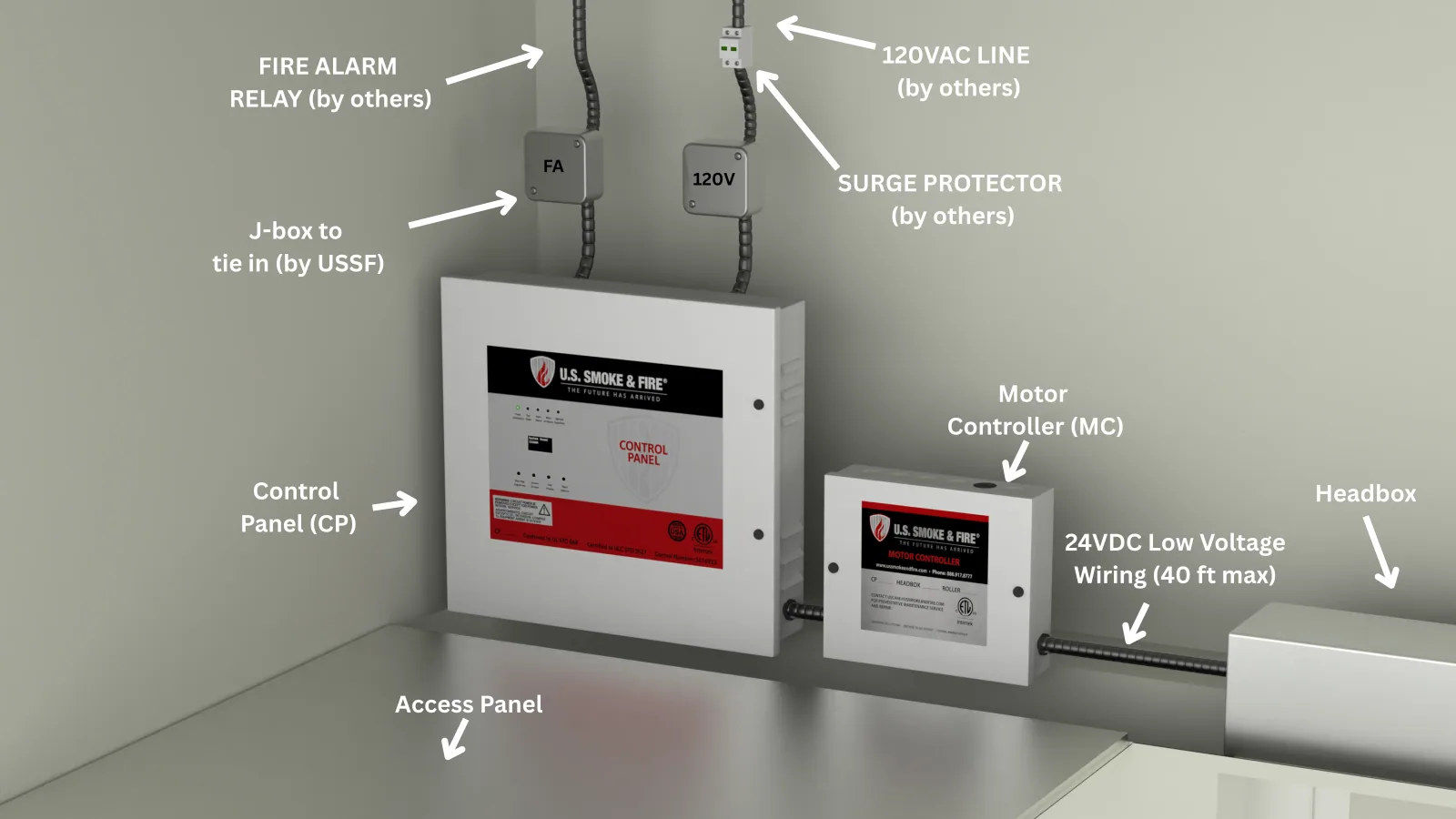

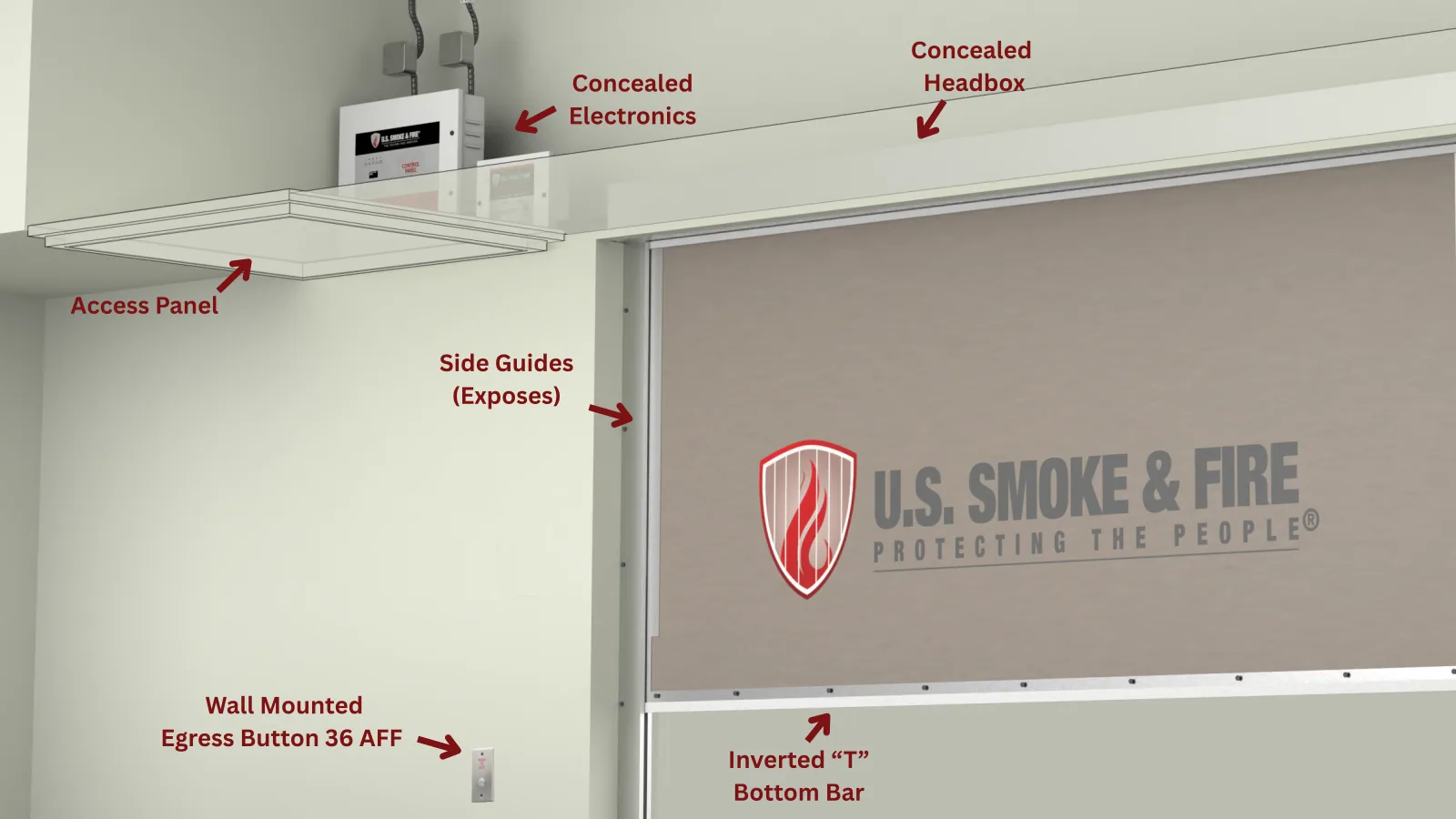

The head-box is mounted utilizing threaded rods and unistruts. For power, 120V to motor side of the head-box. The Steel-Tex Fire Shutter (SFS) will release when receiving a signal from fire alarm system (FAS). Push to exit buttons are installed for egress. Leading edge safety sensor option. BMS relay option. Beam Sensor option.
Hose Stream 120® Installed Back to Back
Please note that two systems each with a fire protection rating of 1 1/2 hour, installed on opposing sides of the same opening in a fire wall, shall be deemed equivalent in fire protection rating to one 3-hour system per IBC table a.- Harmathy’s Principle

Technical Information:

  • View Guardian Fire Testing Laboratories Listing by clicking here.

Product Downloads For HOSE STREAM 120:

PRODUCT DOWNLOADS FOR HOSE STREAM 120 INSTALLED BACK TO BACK FOR 90 MINUTES EACH (3 HOURS BY HARMATHY PRINCIPLE)
